Water manometers – JTM

The water manometer JTM is a medical device designed for the measurement and precise adjustment of low vacuum levels, ranging between atmospheric pressure and 90 mbar. It is particularly suitable for thoracic suction, tracheal suction, as well as for use in neonatology, where fine and safe regulation is essential. The device connects directly to a wall vacuum source, either via a direct probe or a rail mounting system. For safe and compliant use, it must be combined with a collection jar and a suction hose.

Features

Body and graduated rod in polycarbonate, ensuring durability and transparency for optimal reading.
Head and base in chrome-plated brass, providing reliability and long-lasting resistance.
Rod graduated every centimetre, allowing precise reading of the vacuum level.
Unit of measurement: centimetre of water (cmH₂O).
Micrometric screw valve for fine and progressive adjustment.
Designed for use with our 2 L jars fitted with a long dip tube.
Full traceability: each device features a unique serial number laser-engraved on the body.

Versions

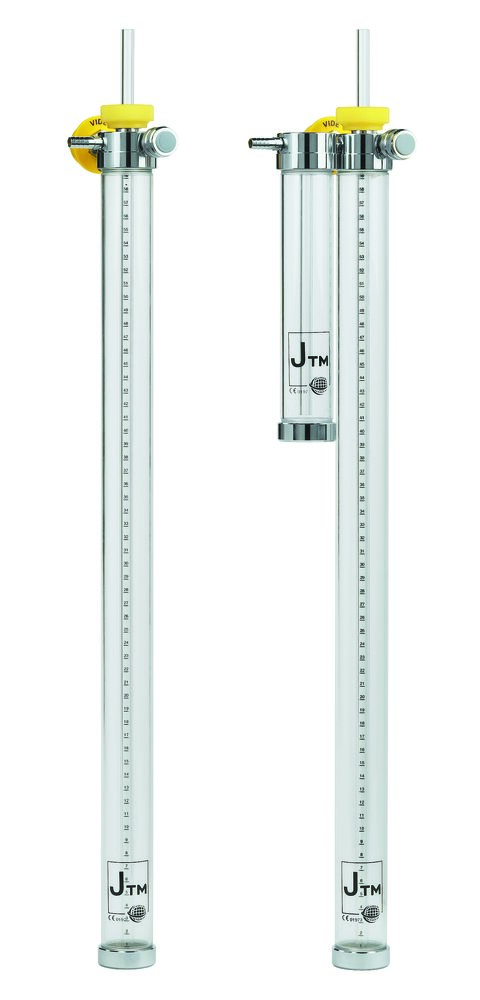

Single or twin configuration

Lengths:

60 cm, allowing a vacuum level adjustment up to 55 cm H2O
100 cm, allowing a vacuum level adjustment up to 90 cm H2O

Downloads

Pictures pack

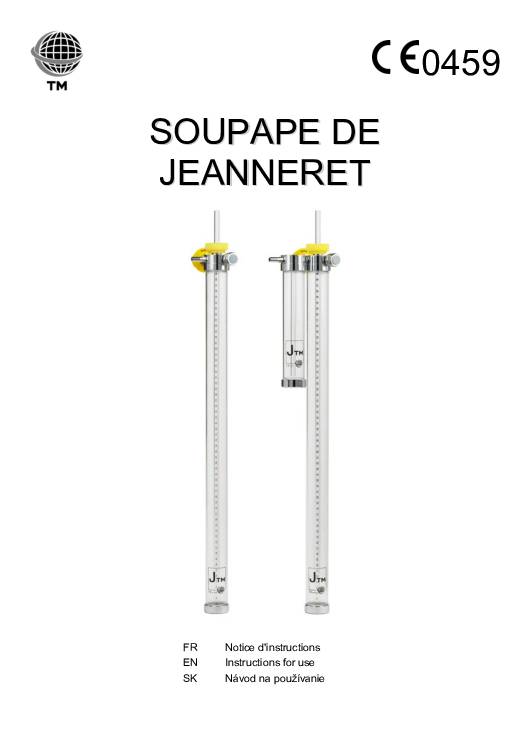

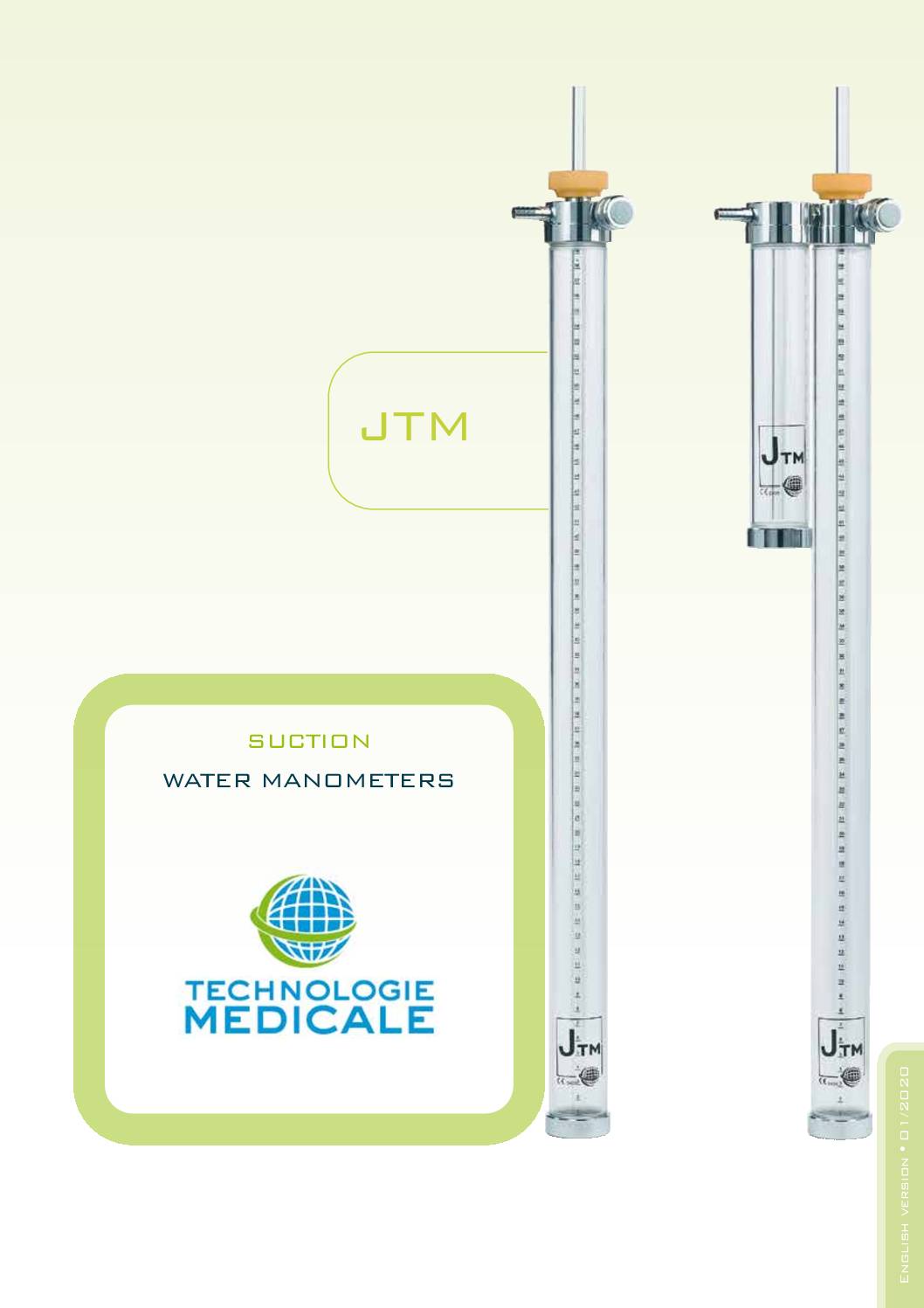

Catalogs & instructions

Standards

AFNOR (French standard), BS (British standard), DIN (German standard), US OHMEDA (American standard), UNI (Italian standard), NORDIC (Scandinavian standard), CARBUROS METALICOS (Spanish standard), DISS (American standard), Czech standard and Korean/Japanese standard. Contact us for other standard.
