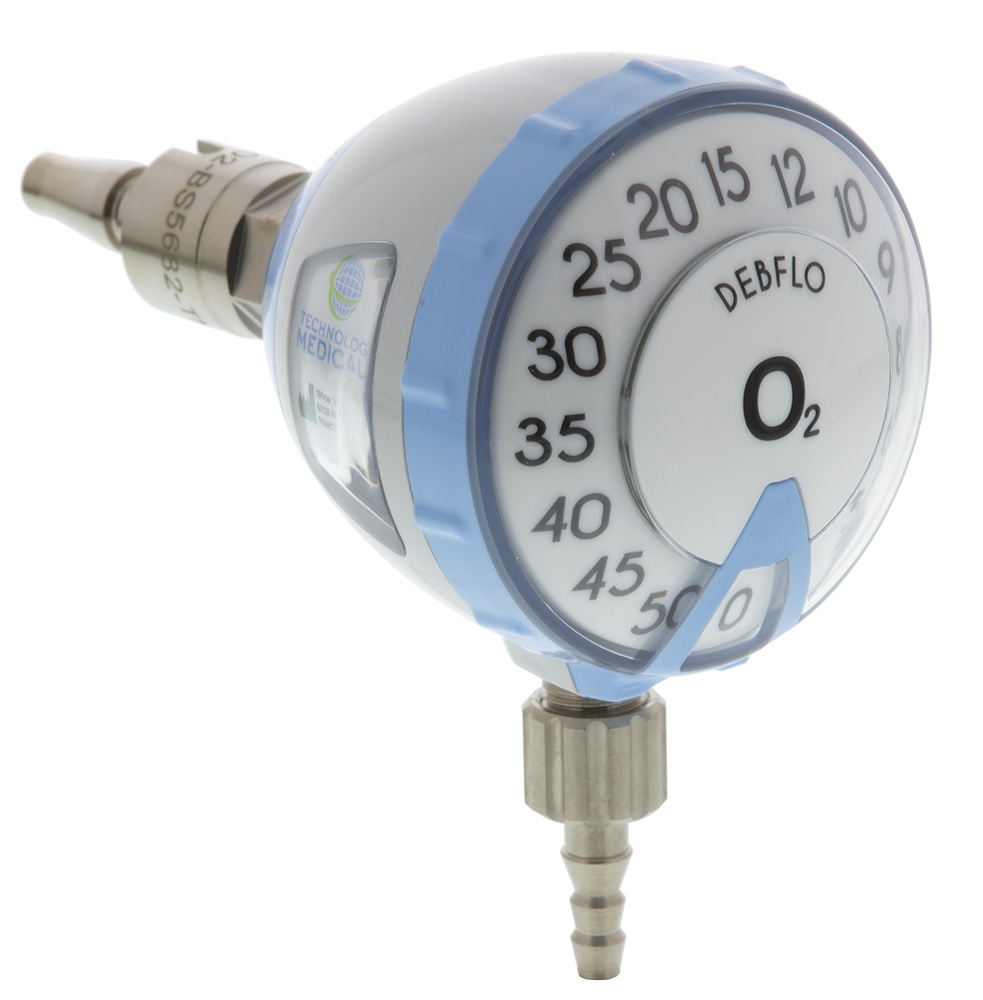

DEBFLO

DEBFLO pre-calibrated orifice flowmeters are medical devices designed to ensure the precise adjustment of gas flow delivered to the patient via the respiratory tract.
They connect directly to a pressurised wall gas source, either with a direct inlet or through a medical rail mounting.
For complete and safe use, they must be combined with a humidifier/nebuliser or fitted with an outlet nipple.

Features

Stable and precise flows, usable in all positions for optimal clinical adaptation.
15 flow settings available – for each version, offering great flexibility of use.
Extra-large display – ensures perfect readability, even from a distance.
Ergonomic control knob – easy grip and notched positions to prevent accidental flow changes.
Enhanced safety – gas flow maintained between two positions, ensuring continuity even if mispositioned.
Safety stop – prevents switching directly from 0 to maximum flow or vice versa.
Guaranteed traceability – individual serial number engraved on each flowmeter.
Supply pressure: 4.5 bar ± 0.5

Gases

O2, medical AIR

Flowrates

5 l/min, 15 l/min, 50 l/min

Versions

Single and Twin
DEBFLO without integrated regulator (grey body)

Accessories

Downloads

Catalogs & instructions

Standards

AFNOR (French standard), BS (British standard), DIN (German standard), US OHMEDA (American standard), UNI (Italian standard), NORDIC (Scandinavian standard), CARBUROS METALICOS (Spanish standard), DISS (American standard), Czech standard, SANS/SABS (South African standard) and Korean/Japanese standard. Contact us for other standard.
